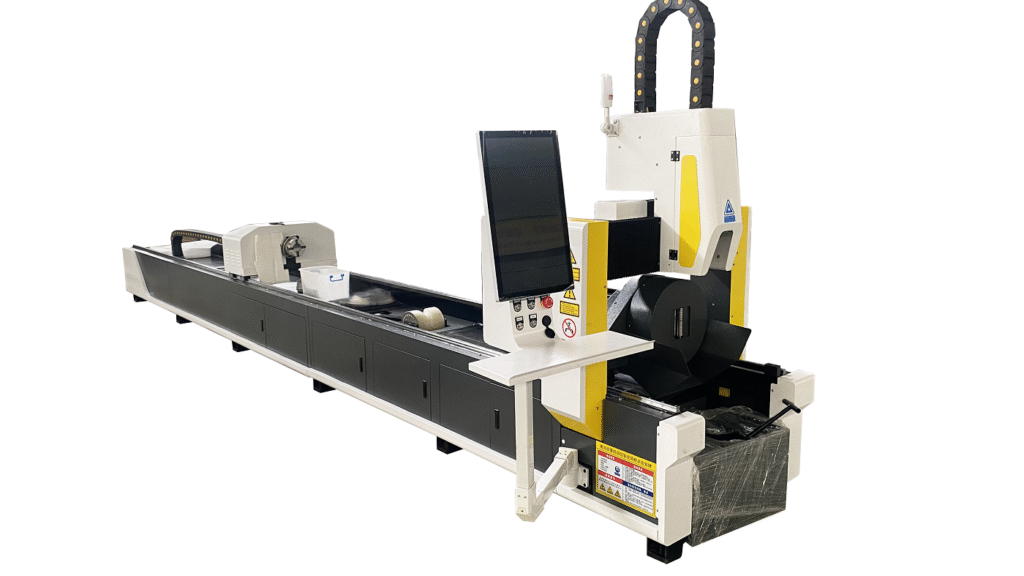

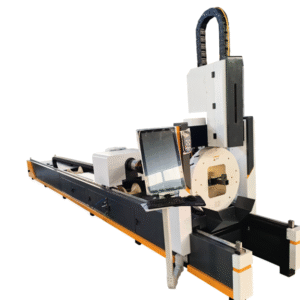

Small Size Tube Laser Cutting Machine
This is a high-precision laser cutting machine for round pipes, angle steels, and channel steels with a length of less than 7 meters and a diameter (side length) of 25-245mm. It can be equipped with an optional automatic loading system, which has high cutting efficiency and saves labor.
Adress
Greenland Central Square, Huaiyin District, Jinan City, Shandong Province
TEL
+86 15566941789
Info@dlweyoung.com
PRODUCT DETAILS
Machine Selling Points
1.Focus on small and medium size pipes and profiles cutting
2.The machine comes with a fully automatic loading and unloading system
3.High-power motor with high-speed chuck ensures high efficiency
4.With automatic smoke exhaust pipe, cutting is safer and environmentally friendly
5.Luxurious fully enclosed model with good-looking appearance
6.High-precision grinding rack and high-precision cutting
7.Free nesting software included with purchase
8.2.5-year warranty for the entire machineand lifetime maintenance
MACHINE PARAMETERS
| Model: | 24560 | Machine workking area: | 245x6000mm |
| Laser Power: | 1500W/3000W/6000W/12000W | Machine system: | NC studio |
| Cutting accuracy: | ±0.2-0.65mm | Positioning accuracy: | ±0.02 |
| Machine weight: | 7500kg | Auxiliary gas: | Compressed air/nitrogen/oxygen |
| Woring voltage: | 380V three-phase electricity | Cooling method： | Water cooling |
| Cutting thickness | 0.2-20mm | Maximum speed： | 70m/min |
Cutting samples
