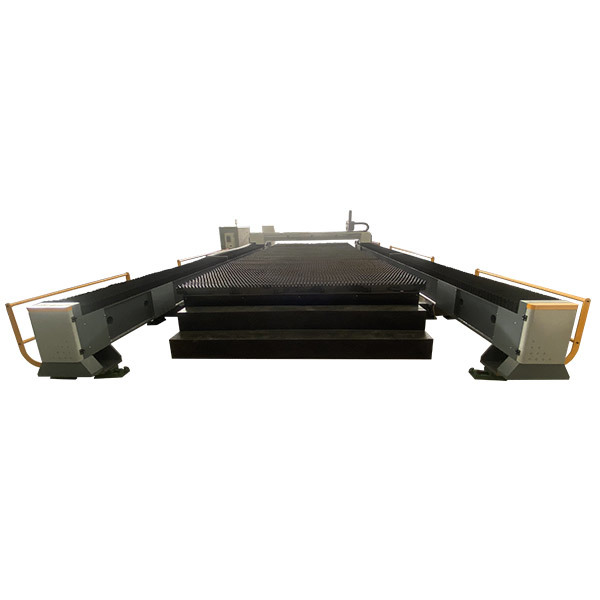

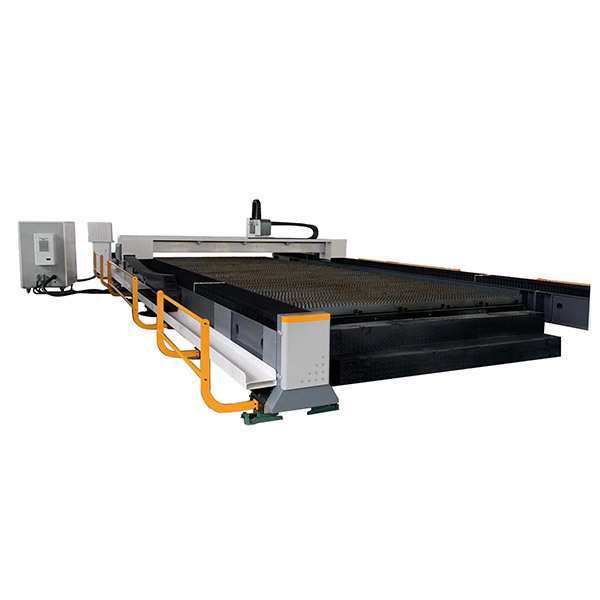

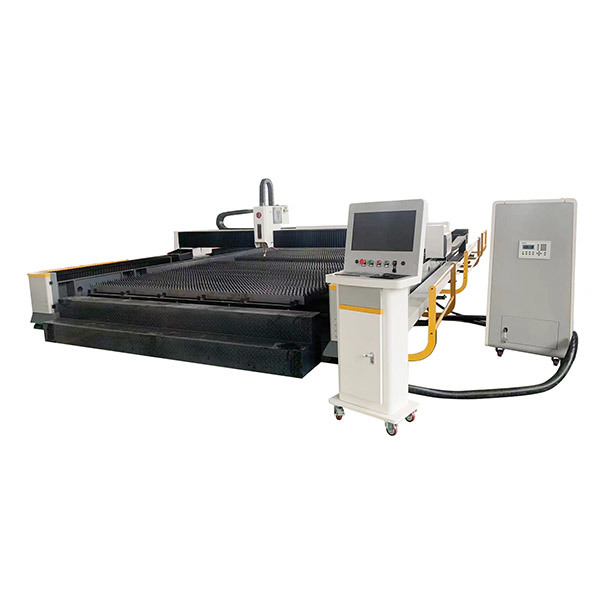

Gantry Laser Cutting Machine
This gantry laser cutting machine is a heavy-duty laser cutting equipment specially designed to cut large and thick metal plates. Its table is separated from the guide rail, and the table is crushed by the plate without affecting the cutting accuracy. It is more durable than desktop machines. Also due to this separate design, his package size is smaller and the shipping cost is less. It can be equipped with a rotating shaft to form a machine that cuts tubes and plates in one.
Adress
Greenland Central Square, Huaiyin District, Jinan City, Shandong Province
TEL
+86 15566941789
Info@dlweyoung.com
PRODUCT DETAILS
Machine Selling Points
1.Focus on full-page cutting of large metal plates and thick plates
2.The table is separated from the guide rail, and the damage of the table does not affect the overall accuracy
3.Imported Japanese servo motor and reducer have higher precision
4.The double-sided stair base can make it easier for the operator to receive materials and maintain the machine
5.Integral manganese steel weight design, more stable operation
6.High-precision grinding rack High-precision cutting
7.Small package size and low shipping cost
8.Buy a free boss tutorial to teach you how to draw for free
9.Free nesting software included with purchase
10.2.5-year warranty for the whole machine and life-long maintenance
MACHINE PARAMETERS
| Model: | 3060/3080/4060/4080 | Machine workking area: | 3000x6000mm/3000x8000mm/4000x6000mm/4000x8000mm |
| Laser Power: | 3000W/6000W/12000W | Machine system: | Cyput |
| Cutting accuracy: | ±0.1 | Positioning accuracy: | ±0.02 |
| Machine weight: | 12000kg | Auxiliary gas: | Compressed air/nitrogen/oxygen |
| Woring voltage: | 380V three-phase electricity | Cooling method： | Water cooling |
| Cutting thickness | 0.5-50mm | Maximum speed： | 90m/min |
Cutting samples
oppo_16
oppo_2
